- Ramset Sliding Gate Operators - Ram 5200, 1 Hp, 220VAC slide gate operator
- Max Gate Size 40' Max Gate Weight 3000 lbs.
- Motor Continuous duty. 1 Hp, 220VAC, 50/60 hz
- Control Board: easy to configure solid state board with features such as L.E.D.
- Note: The Per UL325-2016 all gate operators sold in the USA after February 2016 will be required to have a monitored safety photo cell to prevent accidental crushing or entrapment.
Ram 5200, 1 Hp, 220VAC slide gate operator
Max Gate Size 40'
Max Gate Weight 3000 lbs.
Motor Continuous duty. 1 Hp, 220VAC, 50/60 hz
Emergency Release Chain Release or Battery
Back-up System.
Dimensions H:25" - L:18 1/2" - W:16 1/2" Travel
Speed 1' Per Second
Perfect for commercial/industrial installations on very heavy gates.

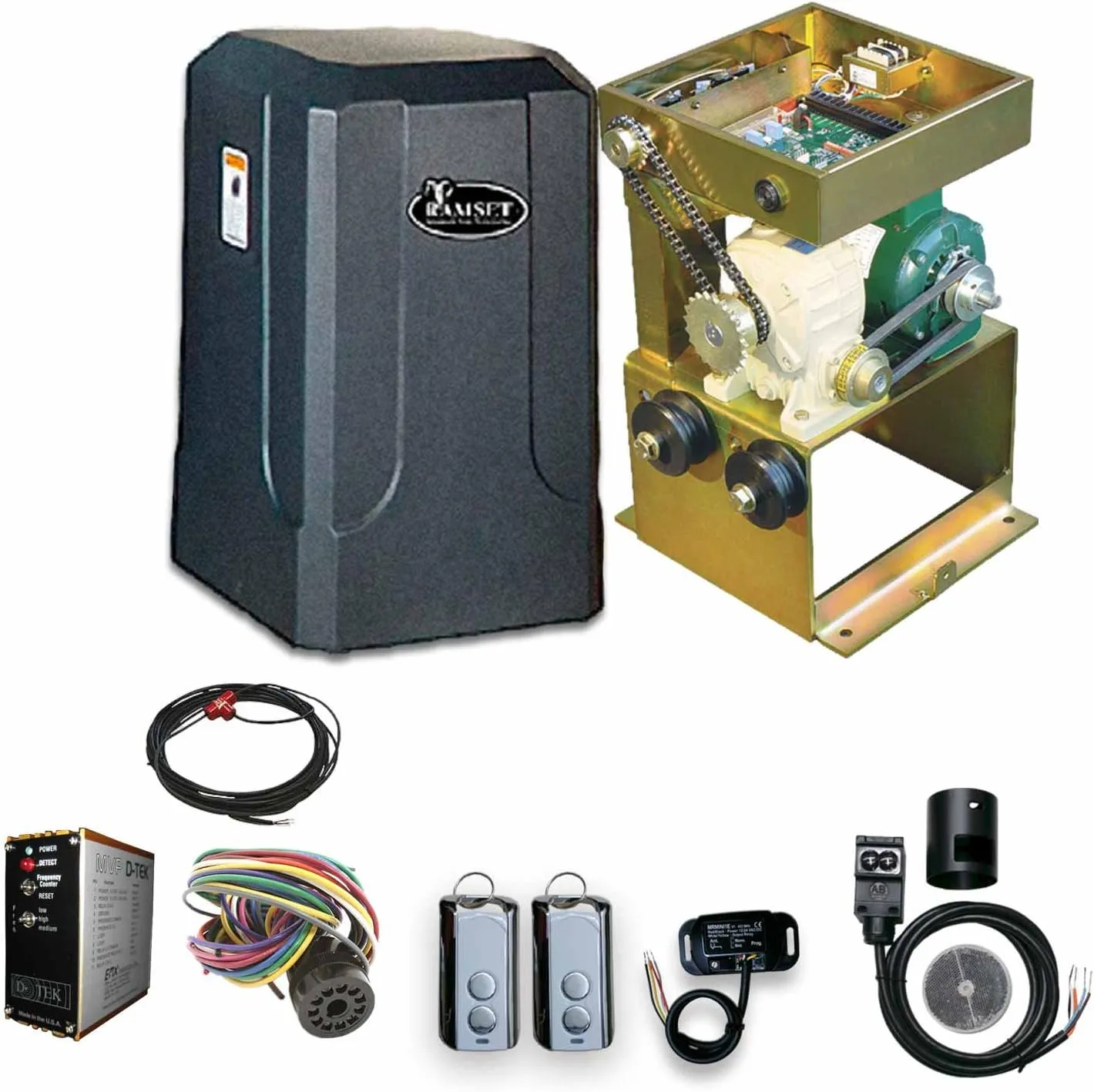

Ram 5200 gate Openers kit 3
Include:
Ram 5200 gate operator
Receiver 433 MHz range of up to 150 feet
Two Mini-Remote Control model 433 MHz 2-Button
Allen Bradley 60-2728 Reflective Photo Eye 30' sensing distance
EMX Lite Preformed Loop 4x8
EMX MVP D-TEK loop detector 9V to 220V AC or DC
EMX Loop detectors HAR-11 Pin Harness
